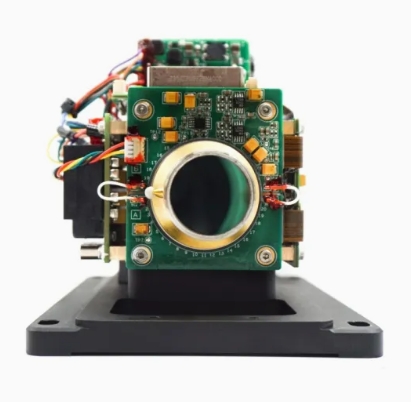

MID Wave Stirling Cooler Infrared Thermal Imaging Camera Movement
Product Description
The MWIR thermal imaging core utilizes a compact, high-sensitivity MCT focal plane detector, with Stirling cooling. It features a pixel size of 15 μm and a spectral response range of 3.7 μm to 4.8 μm. The system employs adaptive non-uniformity correction technology, along with intelligent image processing algorithms such as noise filtering, enhancement, and automatic light adjustment. Key characteristics include high sensitivity, small size, modular design for easy integration, rich interfaces, high reliability, and strong expandability
MID Wave Stirling Cooler Infrared Thermal Imaging Camera Movement
Product Description
The MWIR thermal imaging core utilizes a compact, high-sensitivity MCT focal plane detector, with Stirling cooling. It features a pixel size of 15 μm and a spectral response range of 3.7 μm to 4.8 μm. The system employs adaptive non-uniformity correction technology, along with intelligent image processing algorithms such as noise filtering, enhancement, and automatic light adjustment. Key characteristics include high sensitivity, small size, modular design for easy integration, rich interfaces, high reliability, and strong expandability
Product Feature
Adaptive non-uniformity correction technology;
640×512 Resolution, with frame rates up to 100 Hz;
High Linearity, high Stability, high Repeatability, suitable for radiation characteristic measurements;
Multiple Video Outputs: PAL/NTSC/CameraLink/GigE;
Customizable: Available for wide spectral bands, high frame rates, and other specialized requirements.
Product Parameters
ModelNumber | UND-MW640-15LEO | UND-MW640-15 | |
Resolution | 640×512 | ||
Pivl pitch | 15μm | ||
FNo | 4.0/5.5 | 2.04.0 | |
Detector | Detectormateria | HgCdTe | |
Performance | Spectrual range | 3.7μm-4.8μm | |
NETD | ≤20mK@25ºC | ||
Cooler Type | Stirling oooled | ||
Cooling time | <8min | ||
Environmenta | Operating temperature | -40ºC~+65ºC | |
Storage temperature | -45ºC~+70ºC | ||
Shock | Aooeleration of 30g,with ahalf-sine distribution of llms | ||
Vibration | 5-500Hz,2.73g,15min,3 axis | ||
Physical data | Size | ≤127×113×89mm | ≤107×146.5×120mm |
Weight | <2kg | ||
Interface | Input voltage | 24±2V | |
Power consumption | s25W @20C | ||
Product Application
The MWIR thermal imaging core can be widely used in border protection,industrial monitoring,fire prevention and early warning,surveillance and search,night vision equipment,characteristic measurement,thermal imaging and targeting,air defense monitoring,scientific research,infrared identification.
